time lapse VCR recorders for CCTV wireless camera systems

  • VTL24: 24 Hour recording capacity, Multiple time settings (3, L12, L24, 24)
  • VTL960: 960 hour recording capacity, Multiple time settings (3, L12, L24, 24, 48, 72, 120, 160, 240, 480, 720, 960)
  • Time Recording function for extended life span
  • Rechargeable back-up battery (1 month duration)
  • Simple daylight saving time adjustment feature
  • Colour / monochrome switchable for recording resolution
  • Full alarm and step cable contacts
  • Auto repeat recording
  • Series recording - allows long-term continuous recording using two or more time lapse VCR's
  • Alarm search function
  • Built in time/date generator
  • Alarm recording when alarm sensor is triggered
  • Optional RS-232C or sequential switching function



VTL24/VTL960 Time Lapse VCR

Model: VTL24 / VTL960
Recording Method: Dual-head rotating azimuth recording system
Audio Recording: In 3H, L12H, 24H modes
Tape Speed: 23.39mm/SEC (3H mode)
Specified Video Cassette Tape: VHS 1/2 inch, video cassette tape (E180 tape)
Rewinding Time: Approx. 5 minutes (when using E180 tape)
Signal System: PAL
Luminance Signal: FM method
Recording Method: Colour Signal
Down converted subcarrier direct recording
Video Input: BNC: 1V p-p, 75 Ohms (unbalanced)
Video Output: BNC: 1V p-p, 75 Ohms (unbalanced)
Horizontal Res.: Black and White mod 300 lines (3H Rec)
Colour Mode: 240 lines (3H Rec)
Audio Input: -8dBm, phono jack, 47K Ohms (unbalanced)
Audio Output: -4+3dBm, phono jack, 600 Ohms (unbalanced)
Operating Temp.: 5ºC to 40ºC
Power Req.: 100-240V AC, 50 / 60Hz
Power Consumption: Approx. 19W
Dimensions (mm) (WxHxD): 360 x 90 x 312
Weight (Kg): 4.2

960 hour version £365

Digital Time Lapse Recorder (PCI CARD) and 1/4/8/16 Camera Multiplexer


Digital HD Recording & Remote Vision Software and PCI card.

x-vision CCTV Software ~ PCI Cards for Windows 9BSE. ME. 2000 & XP
Designed to the very highest standards our x-vision CCTV Software ~ PCI Cards are ideal for use in all types of premises from a domestic premises requiring a simple to use but effective single camera system, right up to an industrial premises requiring a
state of the art 16 camera system. Available in 1,4, Sand 16 camera versions, with 15, 30 and 120 frames per second recording speeds, which
means there is a model available to suit almost every application and budget. Designed for use with Windows, x-vision is compatible with
Windows 98 (Second Edition),
ME (Millenium Edition), 2000 and XR Packed with unique features such as high quality dig ital recording, multiplexing, multi camera
playback, remote vision and playback over ISDN (Digital Telephone Lines), PSTN
(Analogue Telephone Lines), LAN (Local Area Network) or the Internet using the integrated Web server application and an ADSL
(Broadband) connection. The remote vision frame rate of up to 25 fps is ideal for applications such as
checking on properties, movement of stock, staff attendance and behaviour and checking/verifying Alarm
activations.

Our x-vision system features Digital Recording of up to 1, 4, 8 or 16 Cameras directly on to Hard Drive, simultaneous playback & recording, Remote Viewing & Webcam functions.


The x-vision system is supplied ready to use with the x-vision software and card  simply plug in the PCI card, install the software then simply turn on, plug in your cameras, set up the required features and enjoy the benefits of one of the most powerful CCTV systems in the world.

Alternatively for those wishing to use there own PC, the system is also supplied as a PCI camera interface card and software.

The x-vision system can record at a much higher frame rate and resolution than traditional Multiplexer and Time Lapse VCR combinations.

In addition to Remote Viewing functions the Webcam feature will send continuously updated images from the cameras, directly to the www via an ADSL line (click on the demo button above), these can then be viewed from any PC in the world running Netscape or Internet Explorer.
You can record up to 16 cameras independently at the same time without interruption while viewing live images of the cameras as a multi camera or individual camera view, you can even playback recordings made earlier without interrupting the current recording.

All recordings are made on to the integrated Hard Drive and each camera is recorded without interruption just as with a traditional multiplexer, and because the recordings you have made are digitally stored on to the hard drive, you can zoom in during playback, search and go to a specific time in the recording in seconds, and if you have a printer attached you can even print off an image from the recordings.

Digital storage also means that you can replay the recordings over and over again without any loss in picture quality and with a better picture quality than conventional VHS recordings.

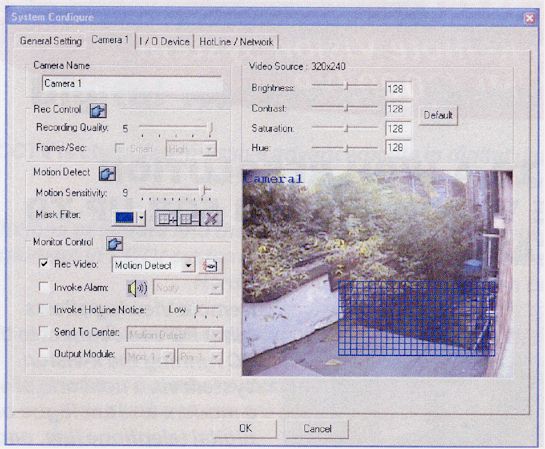

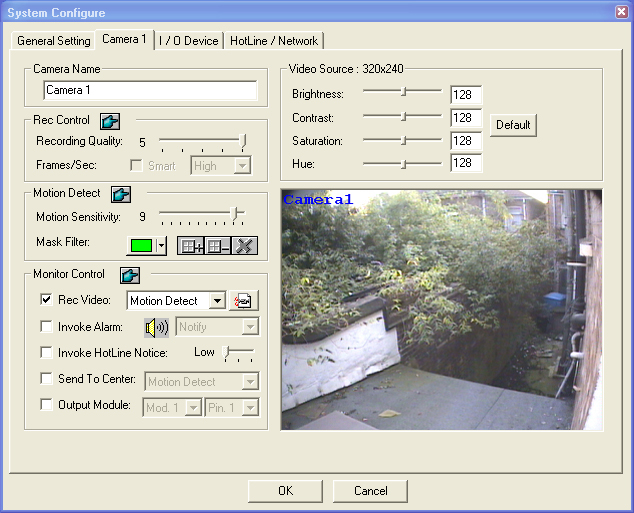

Intelligent Motion Detection & Auto Alert Function





To increase the recording time and reduce wasted recordings with no movement, the x-vision system can record only when movement occurs. To reduce the chances of false alarms it is possible to specify the sensitivity of the motion detection feature.

Once movement has been detected by the system, as well as recording locally it can dial out to any phone and play a user recordable message alerting you of the fact that the computer has detected movement, or alternatively alert a pager with a text message.

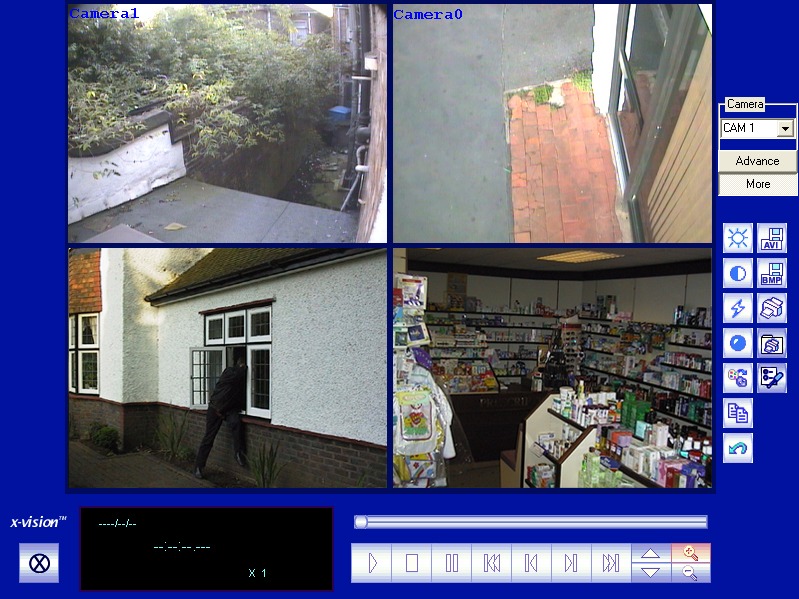

View all your cameras together, or each camera individually or sequentially during live viewing and playback
If you have received notification of movement being detected or you simply want to check on your premises while you are away, you can dial in to the x-vision system from a Windows PC or Laptop from anywhere in the world and watch or record all the cameras together or each one individually.
The x-vision system can send images from the cameras connected to it directly to the www. Enabling you to view your cameras from any PC with internet access, even from a PC at an Internet Cafe (click on the Demo button above to see this in action).

When connected to a Network the MultiCam system can send images from the cameras to all the other PC’s on the Network.

Remote recording is also possible, via the www and LAN.
Additional Features

Adjustable Frame Rate for Recording / 15, 30 & 120 fps Versions

Three different frame rates are available, 15 fps (similar to a Time Lapse Video & Multiplexer), 30 fps (the standard for Digital HD systems, twice the rate of a Time Lapse Video & Multiplexer), and 120 fps (8x faster than a traditional multiplexer CCTV system), this is automatically divided amongst the active cameras, or can be set by the user for each camera, for example on a 8 camera system you could have 4 cameras with a high frame rate, and the other 4 at a low rate.

The 15 fps system is recommended for general recording in domestic and small business environments, for critical applications such as watching cashiers at checkouts, where missing a split second would allow the cashier to commit theft, or for high risk applications we recommend the 120 fps system, for all other situations that fall in between these two examples we would recommend the 30 fps system which is still twice as fast as a traditional multiplexer CCTV system.

Covert Camera Option

The Covert Camera option allows you to record cameras connected to the system without displaying them on the monitor, so anyone looking at the monitor will not be aware of any hidden (covert) cameras being recorded.

Digital water mark

To stop the digital recordings being tampered with all the recordings are dated and digitally water marked.


An integrated Composite & S-VHS output allows you to display your cameras on an SVGA monitor and/or a TV or CCTV Monitor. These outputs can also be used for connecting the system to a traditional VCR.

Timer Recording

To further increase the recording time available on your hard drive and to ensure the system is only recording when you require it to. A weekly, monthly and yearly timer can be setup quickly and easily.

Ease of Use & Security

All the features of the system are quick and easy to set up and all the setup features can be protected by a user defined password so that only authorised people will have access.

Camera Compatibility

The system is compatible with all industry standard CCTV cameras

Recording times

Version 24 hours 1 week 2 weeks 1 month 3 month
15 fps 2 GB 14 GB 28 GB 56 GB 168 GB
30 fps 4 GB 28 GB 56 GB 112 GB 336 GB
120 fps 16 GB 112 GB 224 GB 448 GB 1344 GB



Recommended Minimum PC Specifications

Operating System:

Windows 98, 98SE, ME, 2000, XP

CPU:

Pentium III 500 MHz / AMD equivalent or above (Pentium IV 1400 MHz or above recommended for XVISPROSW)

Memory:

128MB or more (256MB recommended for XVISPROSW) min 16mb

VGA Card:

24 bit / 16MB SDRAM / with 800 x 600 or higher resolution

PCI Card:

1 Free PCI socket

ISDN/Modem:

For 100% compatibility we recommend the use of  Zyxel Modems and ISDN TA's only. Others may be compatible but we cannot guarantee this.

ADSL:

Compatible with all popular ADSL adaptors

Remote Viewing PC:

Windows 98 / 98SE / ME / 2000 / XP Multimedia PC with either Network, ISDN or Modem connection,  or if using Web Cam function then any PC/Internet Device running Internet Explorer 4.0 or higher.
