quad and eight way switchers for CCTV camera systems

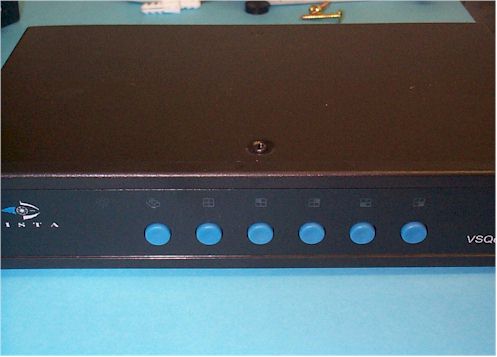

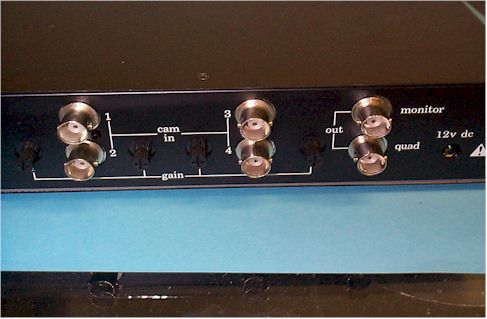

Quad unit

Displays 4 pictures on the same screen at once (switchable) Video output so you can record the output of up to 4 cameras on to one video tape. 12v psu required.

130x220x45mm




Auto Sequential CCTV Camera Switchers

Model: VS94B / VS98B
Inputs: VS94B - 4
VS98B - 8
Video Inputs: 1V p-p, 75 Ohms
Output: 2
Video Output: 1V p-p, 75 Ohms
Alarm: No
Audio: No
Video Gain: 0.8V p-p to 1.4V p-p
Video Bandwidth: 20MHz, 3dB
Crosstalk Input: Better than 40 dB
Switching Interval: Approx. 1 to 35 seconds
Channel Switches: By-pass / auto / home
Power Req.: 117 / 220V AC
Power Consumption: 1W
Video Connectors: BNC
Construction: Steel, black baked enamel
Operating Temp.: -15C to 60C
Dimensions (mm) (WxHxD): 218 x 44 x 200
