Transmitter and receiver modules for CCTV wireless camera systems

special offer wireless colour camera and receiver

Complete wireless CCTV system with video. Kit comprises colour camera with simple battery connection and a receiver with video output. Camera will run on battery or optional psu, receiver will require a psu.


  • .25" Tv
  • 380 lines
  • colour
  • 6-12vdc
  • manual tuning



Micro sized transmitter and receiver 2.4ghz wireless modules

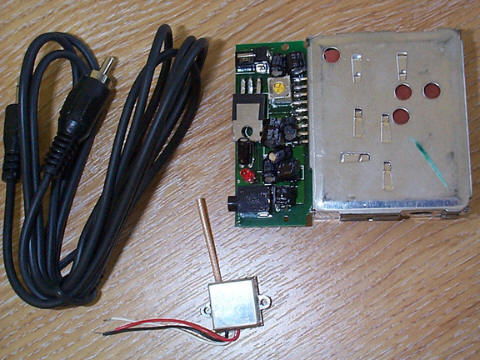

DCP01040.jpg (57516 bytes)The 2.4ghz wireless transmitter only measures 15mm square!

Adjustable channel settings on both the transmitter and receiver make this the ideal modules for covert projects.

Transmitter requires 4.5-7vdc, receiver 9-12vdc

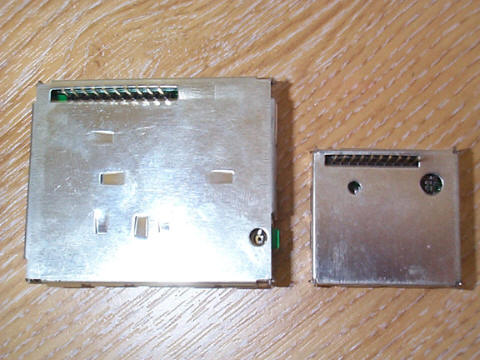

4 channel stereo 2.4ghz wireless transmitter and receiver


TRANSMITTER
Frequency 2.4-2.4835ghz
Modulation Type FM
RF O/P power <10mw
Channel Space 20 MHZ
Spurious emission Less than -40db
Audio sub carrier 5.5mhz/6.5mhz
Power source DC5-8v regulated
Current consumption 180mA
Audio I/P 1V P-P  600R
Video I/P 1V P-P  75R
RECEIVER
Frequency 2.4-2.485ghz
IF Frequency 479.5 MHZ
Sensitivity Less than 10uV
Power Source DC5-8v regulated
Current consumption 300mA
Audio O/P 1V P-P 600R
Video O/P 1V P-P 75R

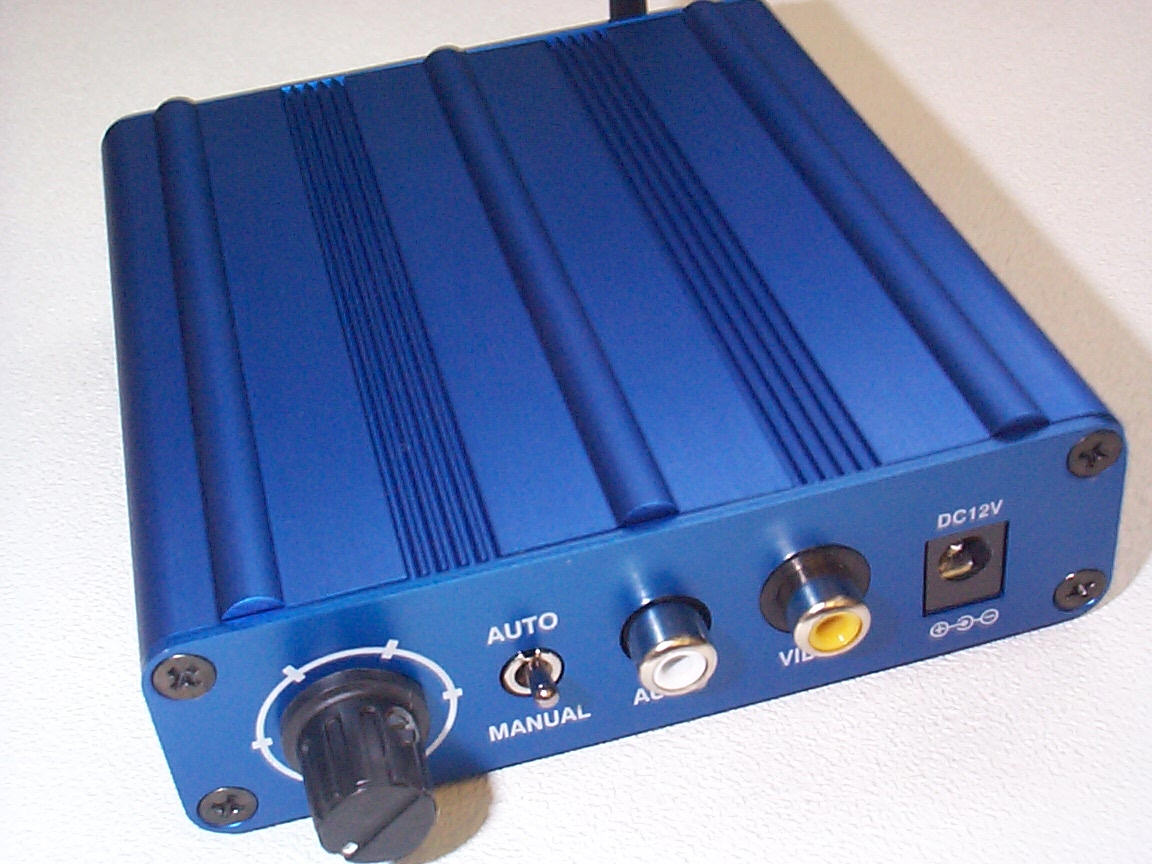

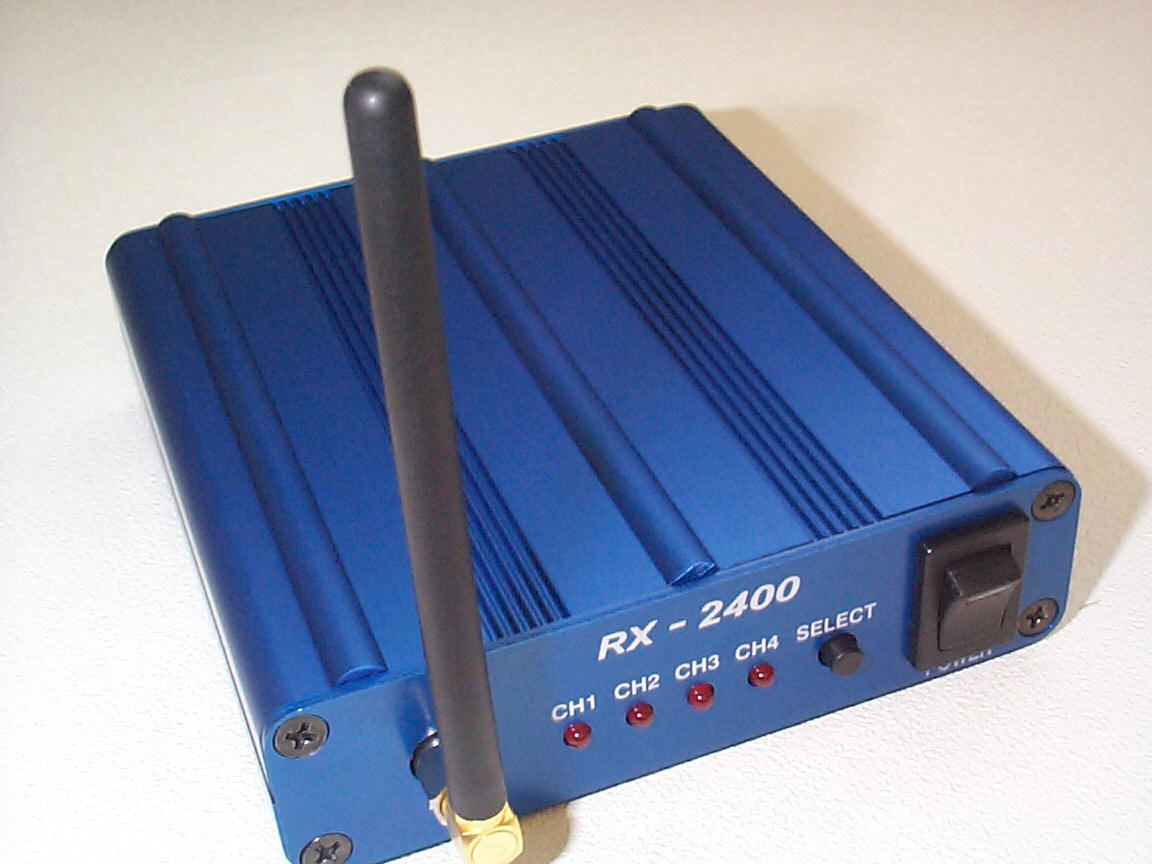

2.4GHz Video and Audio Receiver

Professional quality, metal cased 4 channel 2.4ghz video and audio receiver.


Operating voltage 12vdc
Current consumption Less than 500 mA
Channel Frequency 2.410/2.430/2.450/2.470 GHZ
Channel selection By key switch
Video Output 1v P-P 75 ohm
Auto channel scanning Adjustable time period
Audio output 0.5-1v 600 ohm
Antenna on SMA
Size 130 x 105 x 36mm
Operating temperature -10 to + 50 deg C

New transmitter, receiver and camera kit.

Kit contains four channel switchable camera with built in audio, six IR leds and transmitter, four channel switchable receiver, 2 power supplies, cables, connectors and mounting bracket.



Wireless Transmitter

  • Black and white camera (75x50x55mm)
  • Builtin 4 channel  transmitter (switchable)
  • Audio built in
  • 6 IR Leds
  • Bracket/stand
  • Power supply
  • 30 m range

Wireless Receiver

  • 4 channel (switchable)
  • Audio/video leads and scart adapter
  • Power supply
  • Manual



Ultra Mini 1 Channel CCTV and Audio transmitter and receiver kit

Transmitter

  • Frequency: 2.4 GHz one channel only
  • Operating Power 7-12v DC 100mA
  • Antenna: Omni-directional
  • Built in microphone amplifier
  • Dimensions 12x50x8mm

Receiver

  • Frequency: 2.4 GHz one channel only
  • Video input/output 1v P-P/75 Ohm
  • Audio input/output 0.8v/600 Ohm
  • Antenna 50-17,000 Hz
  • Operating power 180mA
  • Dimensions 150x88x44mm





4 channel CCTV Transmitter Module

  • Frequency: 2.4GHz
  • RF Output power 75 mW
  • Band selection, 4 channel by slide switch
  • PLL Control
  • CH1: 2.413GHz, CH2: 2.432 GHz, CH3:2.451 GHz CH4:2.470GHz
  • RF Output @ 12Vcc 50 Ohms load, typ 50mW, max 75mW
  • Video input Impedance 75Ohms, typ 1v P-P
  • Operating Voltage min 10vdc, typ 12vdc, max 15vdc
  • Operating current Vcc=12vdc 120mA
  • Dimensions 42x19x7.5mm





4 channel video transmitter with audio module



  • Frequency: 2.4GHz
  • RF Output power 50 mW
  • Band selection, 4 channel by slide switch
  • PLL Control
  • CH1: 2.413GHz, CH2: 2.432 GHz, CH3:2.451 GHz CH4:2.470GHz
  • RF Output @ 12Vcc 50 Ohms load, typ 30mW, max 50mW
  • Video input Impedance 75Ohms, typ 1v P-P
  • Audio input Max 2v P-P
  • Operating Voltage min 10vdc, typ 12vdc, max 12.5vdc
  • Operating current Vcc=12vdc 120mA
  • Dimensions 55x37x12mm







4 channel 2.4GHz Receiver with Audio

  • Band selection, 4 channel by slide switch
  • PLL Control
  • CH1: 2.413GHz, CH2: 2.432 GHz, CH3:2.451 GHz CH4:2.470GHz
  • Output impedance: 50 Ohm typ
  • Temperature -10 to +50 deg C
  • Power 12vdc 280mA
