board and PCB CCTV camera modules

board and PCB CCTV camera modules

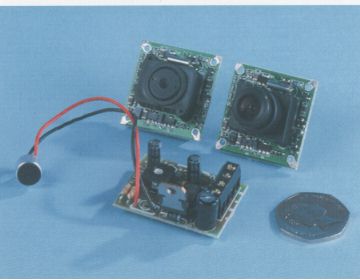

Colour pin hole micro camera, just 16mm x 16mm

CMOS colour pinhole camera, 330 lines 1/3" 12vdc. Fitted with fly leads terminating in a standard DC socket and a phono socket.

Good quality pinhole lens


  • 12vdc
  • 1/3" CMOS
  • 240 TVL
  • 0.5 Lux
  • standard or pinhole
  • Low cost

Low Cost Mono CMOS CCTV Board camera

Model: VBC3033
Signal Mode: CCIR
Image Sensors: 1/3" CMOS
Picture Elements: 348H x 287V
Horizontal Res: 240 TVL
Sensitivity (Lux): 0.5 @ F1.2
Lens Mount: 3.6mm Fitted/

or pinhole
Electronic Shutter: 1/50 - 1/146,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.45
BLC: N/A
White Balance: N/A
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 24 x 24 x 27



  • 12 vdc
  • cased
  • 1/3" CCD
  • 420 TVL
  • 0.3 Lux
  • 3.6mm Lens

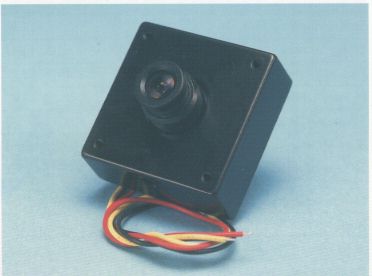

Mono cased board CCTV camera

Model: VBC327
Signal Mode: CCIR
Image Sensors: 1/3" Samsung
Picture Elements: 500H x 582V
Horizontal Res: 420TVL
Sensitivity (Lux): 0.3 @ F2.0
Lens Mount: 3.6mm Fitted
Electronic Shutter: 1/50 - 1/110,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.45
BLC: No
White Balance: N/A
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 43x43x30mm





  • 12vdc
  • Cased
  • 1/3" Sony CCD
  • 380 TVL
  • 0.2 Lux
  • AGC
  • 3.6mm lens
  • Built in audio
  • Easy to mount

Colour cased board camera with audio

Model: VB211
Signal Mode: PAL
Image Sensors: 1/3" HAD CCD
Picture Elements: 500H x 582V
Horizontal Res: 380 TVL
Sensitivity (Lux): 0.2 @ F2
Lens Mount: 3.6mm Fitted
Electronic Shutter: 1/50 - 1/110,000
Audio: Yes
Auto Iris: N/A
Gamma Correction: 0.45
BLC: No
White Balance: Auto
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 58 x 78 x 42mm
  • 12vdc
  • Optional audio
  • pinhole option
  • 1/3" CCD
  • 380 TVL
  • 0.5 Lux
  • AGC
  • Mono

Mono board camera with audio board and pinhole option

Model: VB204
Signal Mode: CCIR
Image Sensors: 1/3" CCD
Picture Elements: 500H x 582V
Horizontal Res: 380 TVL
Sensitivity (Lux): 0.5 @ F2
Lens Mount: 3.6mm Fitted/

or pinhole
Electronic Shutter: 1/50 - 1/100,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.48
BLC: N/A
White Balance: N/A
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC 120mA
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 32 x 32 x 23mm



  • 12vdc
  • 1/3" CMOS
  • 330 TVL
  • 2.0 Lux
  • agc
  • Colour

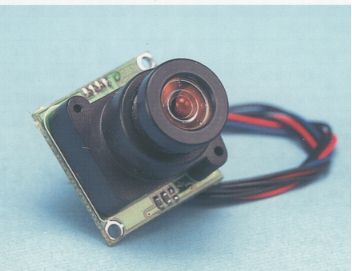

Colour CMOS Board Camera

Model: VBC2025
Signal Mode: PAL
Image Sensors: 1/3" CMOS
Picture Elements: 628H x 582V
Horizontal Res: 330 TVL
Sensitivity (Lux): 2.0 @ F2.0
Lens Mount: 3.6mm Fitted
Electronic Shutter: 1/50 - 1/15,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.45
BLC: No
White Balance: Auto
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 24 x 24 x 27

Mono Board Camera (with audio) pinhole or standard lens

Model: VB206A
Signal Mode: CCIR
Image Sensors: 1/3" Samsung CCD
Picture Elements: 500H x 582V
Horizontal Res: 380 TVL
Sensitivity (Lux): 0.5 @ F2.0
Lens Mount: 3.6mm Fitted
Electronic Shutter: 1/50 - 1/100,000
Audio: Yes
Auto Iris: N/A
Gamma Correction: 0.45
BLC: No
White Balance: N/A
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 32 x 32 x 23

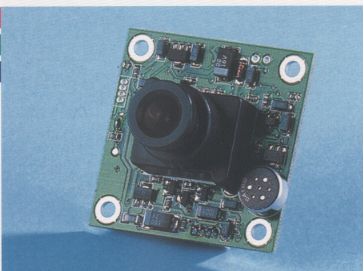

Colour Board Camera (with audio) pinhole or standard lens

  • 1/4" digital colour camera
  • 330 TV Lines
  • Board Size 32x32mm
  • 3.7mm lens
  • Onboard audio
  • 12vdc
  • 1/3" CCD
  • 420 TVL
  • AGC
  • Pinhole
  • 0.02 Lux

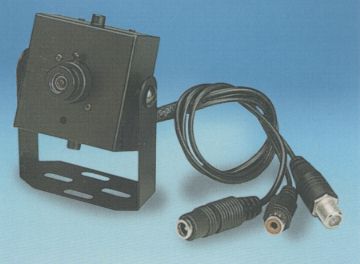

Low Light Mono Pinhole Board Camera (Cased)

Model: VB500P
Signal Mode: CCIR
Image Sensors: 1/4" CCD
Picture Elements: 500H x 582V
Horizontal Res: 420 TVL
Sensitivity (Lux): 0.05 @ F2.0
Lens Mount: 3.7mm Pinhole Fitted
Electronic Shutter: 1/50 - 1/100,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.45
BLC: No
White Balance: N/A
S:N Ration: > 50 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 25 x 25 x 28

  • 12vdc
  • 1/3" Sony CCD
  • 470 TVL
  • 0.4 Lux
  • AGC
  • 3.6mm lens
  • High Res
  • Colour

High resolution colour camera

Model: VB215
Signal Mode: PAL
Image Sensors: 1/3"HAD CCD
Picture Elements: 752H x 582V
Horizontal Res: 470 TVL
Sensitivity (Lux): 0.4 @ F2
Lens Mount: 3.6mm Fitted
Electronic Shutter: 1/50 - 1/110,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.45
BLC: No
White Balance: Auto
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 58 x 78 x 42mm



  • 12vdc
  • 1/3" Panasonic CCD
  • 380 TVL
  • 2.0 Lux
  • AGC
  • Digital
  • 3.6mm Lens
  • Pinhole option
  • Colour

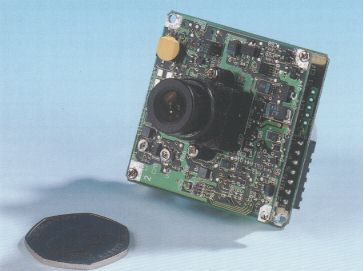

Digital Colour Board Camera with Pinhole option

Model: VB290
Signal Mode: PAL
Image Sensors: 1/3" CCD
Picture Elements: 500H x 582V
Horizontal Res: 380 TVL
Sensitivity (Lux): 2.0@ F1.2
Lens Mount: 3.6mm Fitted/

or pinhole
Electronic Shutter: 1/50 - 1/10,000
Audio: No
Auto Iris: N/A
Gamma Correction: 0.45
BLC: Auto
White Balance: Auo
S:N Ration: > 48 dB
Sync System: Internal
Gain Control: Switchable
Power Req.: 12 V DC 270mA
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 45 x 45 x 40mm



  • 12vdc
  • 1/4" Toshiba CCD
  • 330 TVL
  • 5.0 Lux
  • AGC
  • Back light comp
  • High Sens Mic
  • 3.6mm Lens
  • Pinhole option
  • Colour

Digital Colour Camera with Audio and Pinhole option

Model: VB451
Signal Mode: PAL
Image Sensors: 1/4" CCD
Picture Elements: 512H x 582V
Horizontal Res: 330 TVL
Sensitivity (Lux): 5 @ F2
Lens Mount: 3.6mm Fitted/

or pinhole
Electronic Shutter: 1/50 - 1/100,000
Audio: Yes
Auto Iris: N/A
Gamma Correction: 0.45
BLC: Auto
White Balance: Auto
S:N Ration: > 45 dB
Sync System: Internal
Gain Control: Auto
Power Req.: 12 V DC
Operating Temp.: -10ºC to 50ºC
Dimensions (mm) (WxHxD): 42 x 42  x 27mm
